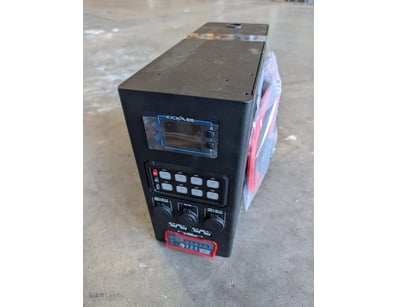

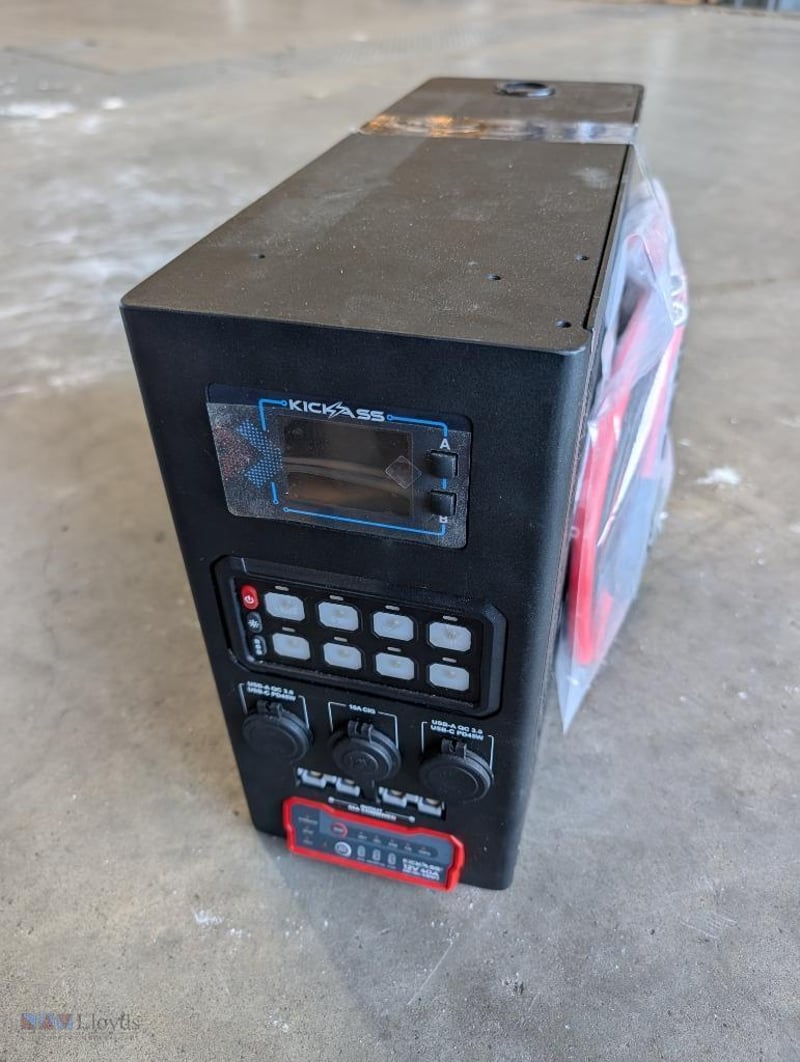

KickAss Canopy Power System with 40A DCDC-MPPT Charger - Wired Switching

RRP: Not confirmed - specialist off-grid power equipment
Condition: Used

Key Specifications
System Type: Portable DC power distribution and charging system
Primary Battery Charger: 40A DCDC-MPPT (Maximum Power Point Tracking)
Charge Input Options: Solar (10-32V), Alternator (9-32V), Mains AC via external charger
Battery Output: 12V nominal system
Maximum Combined Input Current: 50A
Switched Outputs: Multiple 10A, 15A, 20A, 30A circuits plus combined 50A maximum
USB Outputs: 2 x USB-A QC 3.0 (PD 45W each), 1 x USB-C PD 45W
DC Input/Output: 2 x 50A Anderson connectors (front), 3 x 50A Anderson connectors (rear)
MPPT Input: 1 x unregulated solar input
Alternator Input: 1 x 3-pin Anderson connector
Battery Input: 1 x 3-pin Anderson connector
Communication: RJ45 port (KickAss lithium battery compatible)
Charge Modes: Solar, WET, GEL, AGM, Lithium (LiFePO4)
Absorption Float: Programmable
Fault Protection: Comprehensive charging and load protection
Casing: Heavy-duty black powder-coated steel with honeycomb ventilation panels
Dimensions: Compact tower format approximately 600mm height

Included
Main power distribution unit with integrated DCDC-MPPT charger
Wired switching control panel (red frame, mounted at base)
All internal wiring and circuit protection

Condition Notes
Used equipment showing operational wear. Top surface exhibits cosmetic marks and minor scuffing consistent with field use. All electrical connections intact. Ventilation grilles clear. Wiring harnesses present and secured. No visible corrosion or water ingress.

This is a professional-grade portable power management system designed for off-grid applications, caravan and campervan installations, marine vessels, and remote site power distribution. The integrated 40A DCDC-MPPT charger provides intelligent solar charging with multiple battery chemistry support (WET, GEL, AGM, Lithium). The wired switching architecture allows independent circuit control with comprehensive fault protection. Multiple input options (solar, alternator, mains) provide flexibility for diverse charging scenarios. USB outputs support modern device charging. The 50A combined input capacity and distributed output circuits make this suitable for systems requiring simultaneous multi-load management.

Sold as described. Buyer to inspect prior to bidding. Pickup only.

Location of item: 18 Paradise Road, Acacia Ridge, QLD, Australia

This is an Auction Sale. High volumes of incoming product prevent our team from being able to inspect all items individually. All photos, descriptions and any condition reports should be used as a guide only. To find out more about this lot or to book a live video inspection please contact the Auctioneer Contact which can be found on the Auction Details page. All 240v electrical items without an electrical plug, must be installed by a licensed electrician.
