NZIG Transarc 180 AC Welding Plant - Industrial Class




Manufacturer: New Zealand Industrial Gases Ltd (NZIG)

Model: Transarc 180

Part Number: 73089

Serial Number: 5309



Key Specifications


Welding Type: AC (Alternating Current) welding plant

Rated Output: 180 amps (100% duty cycle load volts)

Output Range: 60-180 amps

Input Supply: 230/400 volts, 50Hz, 1 phase

Input Current at Max Output: 400 volts @ 25 amps | 230 volts @ 44 amps

Output Ratings (Open Circuit): 52/54 volts (high) | 77/79 volts (low)

Max Output Rating: 130 amps (100% duty cycle) | 180 amps (60% duty cycle)

Current Settings: 27 volts (high) | 25 volts (low)

Load Volts: 24 volts | 23 volts

Recommended Fuse: 30 amps (400V) | 50 amps (230V)

Recommended Supply Cable: 3/4 mm²

Temperature Rise: Light industrial class, 140°C maximum

Classification: Australian Standard 1965-1978 light industrial class



Physical Condition

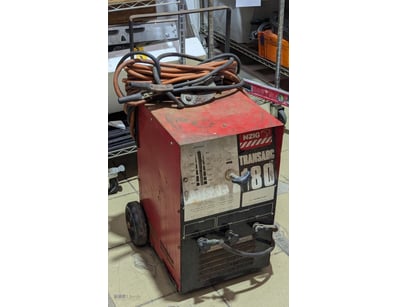

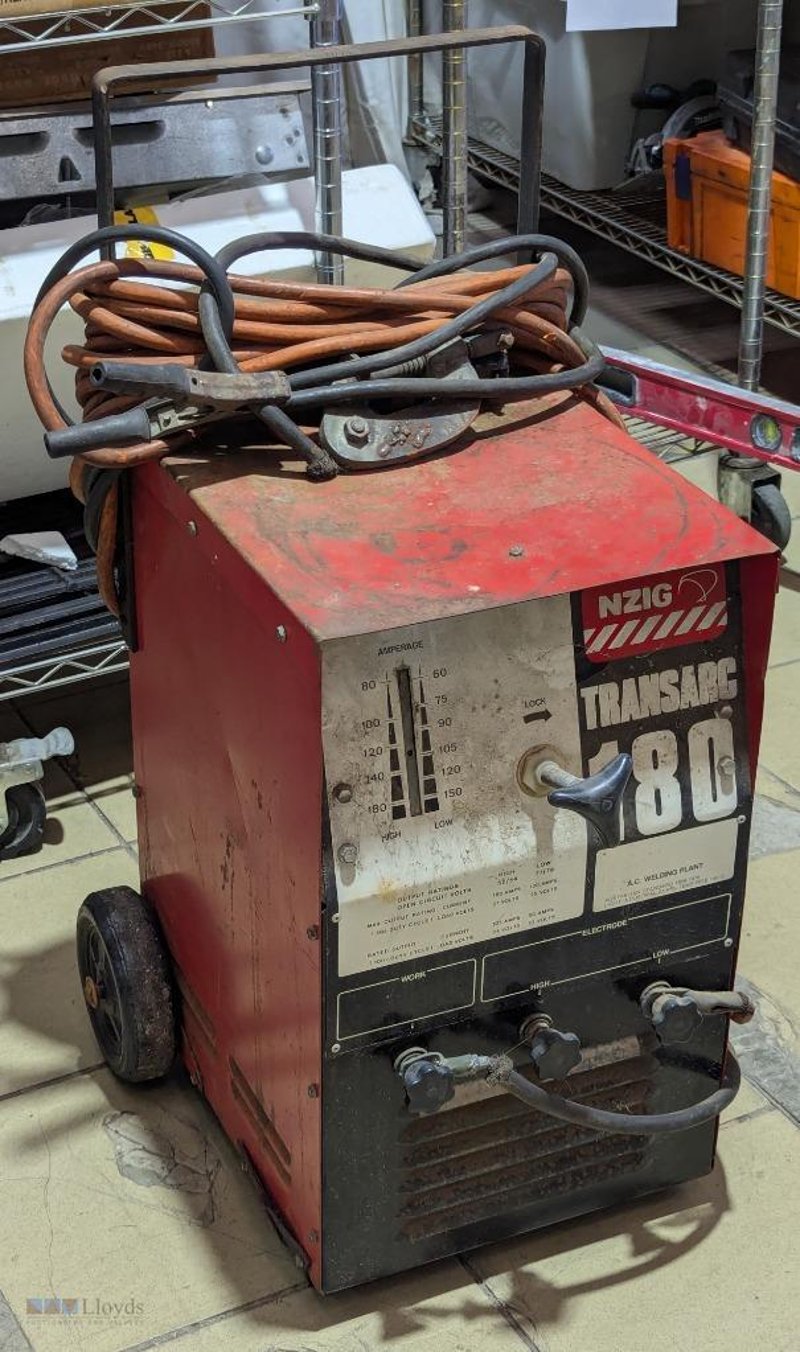

The unit is mounted on a mobile trolley base with two wheels for portability. The red painted steel body shows age-appropriate wear consistent with industrial workshop use, including surface oxidation and paint weathering. The control panel features an amperage gauge with dual scale (60-180 amps), a lock switch mechanism, and clearly marked HIGH/LOW electrode settings. All three electrode connection terminals are present and functional. The welding cable reel is fully wound with heavy-duty copper welding cable (orange/brown insulation) and includes a black earth return cable with properly crimped connector featuring colour-coded indicator (red/green).

Location of item: 69 Manchester Road, Carrara, QLD, Australia

This is an Auction Sale. High volumes of incoming product prevent our team from being able to inspect all items individually. All photos, descriptions and any condition reports should be used as a guide only. To find out more about this lot or to book a live video inspection please contact the Auctioneer Contact which can be found on the Auction Details page. All 240v electrical items without an electrical plug, must be installed by a licensed electrician.
