Barry Brown & Sons Stainless Steel Mixing Tank with SEW Agitator Motor and MOVITRAC LTE-B+ Variable Frequency Drive - UsedBottom and side jacketed tank.

Condition: Used

Overview

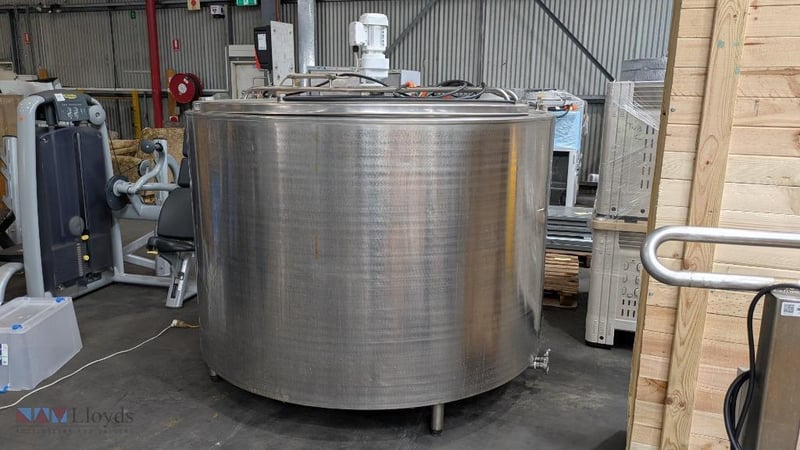

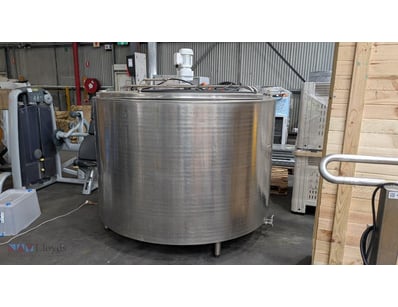

Large stainless steel mixing tank manufactured by Barry Brown & Sons (www.barrybrown.com.au). The tank features a top-mounted SEW geared agitator motor with a SEW MOVITRAC LTE-B+ variable frequency drive (VFD) for speed control. The lid is a domed design with hinged clamp latches and a central agitator shaft penetration. Two tri-clamp sanitary fittings are located underneath the tank, one marked "INLET" with a red cap. The tank stands on stainless steel legs and is fitted with a three-phase industrial plug.

Key Specifications

* Manufacturer: Barry Brown & Sons (Est. 1970)
* Construction: Stainless steel
* Agitator motor: SEW geared motor (top-mounted)
* VFD: SEW MOVITRAC LTE-B+ (Model MCLTEB0008-5A3-1-40)
* VFD SEW Part Number: 18276393
* VFD Input: 380-480V, 50/60Hz, 3 phase, 3.5A
* VFD Output: 0-Vin, 0-600Hz, 3 phase, 2.2A
* VFD Power: 0.75 kW / 1 HP
* VFD IP Rating: IP66 / NEMA 4X
* VFD Serial No: 02566198201030
* VFD Software: S/W 2.05, 2022
* Electrical connection: Three-phase industrial plug (visible in photos)
* Bottom fittings: Two tri-clamp sanitary connections (one marked "INLET")
* Lid: Domed with hinged clamp latches
* Lid embossed branding: "WAY"

Included

* Stainless steel mixing tank
* Top-mounted SEW agitator motor and gearbox
* SEW MOVITRAC LTE-B+ VFD controller
* Power cable with three-phase plug
* Two tri-clamp bottom fittings with caps

Condition Notes

The tank exterior shows general surface marks and light scratches consistent with use. The stainless steel finish retains its overall appearance with no significant dents or corrosion visible. The lid clamp latches and hinges appear intact. The agitator motor and VFD unit appear to be in presentable condition with the VFD label indicating a 2022 date. The tri-clamp fittings underneath are intact with caps in place. Some minor surface residue and marks are visible on the lid area around the shaft penetration and fittings. The Barry Brown & Sons sticker on the tank side is partially peeling. The unit has not been tested.

* VFD Serial No: 02566198201030

Please Note Item Is Quite Large And Buyer Will Need To Organize Suitable Transport

Location of item: 90-94 Bannister Road, Canning Vale, WA, Australia
