Stainless Steel Centrifugal Pump with WEG 1.5kW Motor on Mobile Stainless Steel Trolley - Used

Condition: Used

Overview

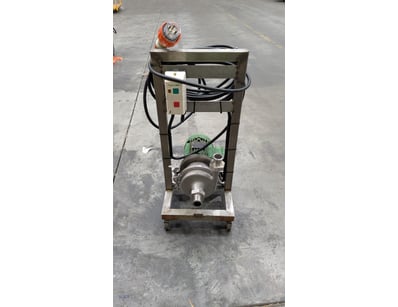

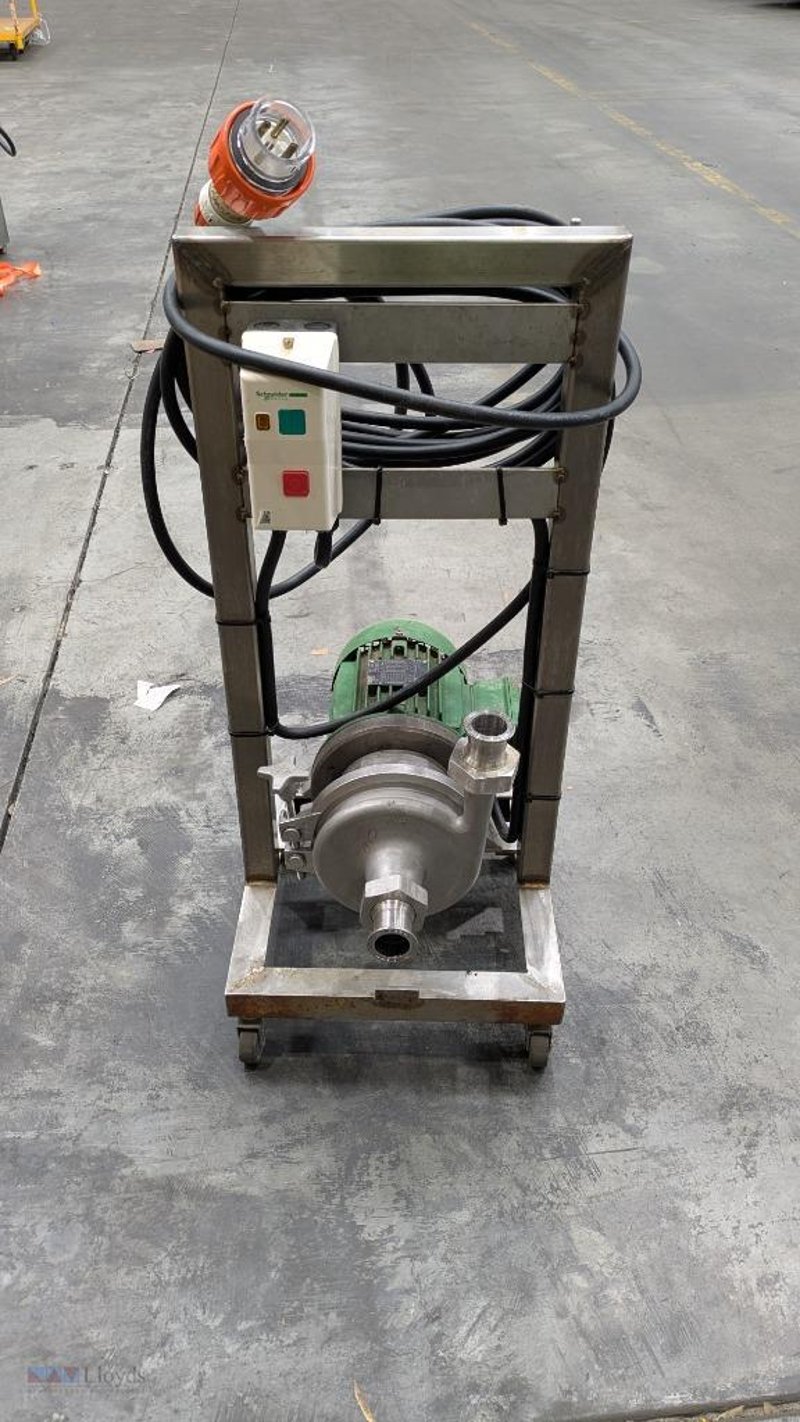

Stainless steel centrifugal pump assembly mounted on a mobile stainless steel trolley frame with castors. The pump head is stainless steel with tri-clamp style outlet and threaded inlet connections. Driven by a WEG three-phase electric motor. Fitted with a Schneider Electric motor starter with start and stop push buttons, and wired to a three-phase industrial plug.

Pump Details
* Stainless steel centrifugal pump head
* Tri-clamp style discharge connection visible on top
* Threaded inlet connection at front
* Clamp-style pump casing fastening with wing nut bolts
* Text "CIP" cast into pump casing

Motor Specifications (from rating plate)
* Brand: WEG
* Frame: 3 - 90S
* Date: 24NOV08
* Serial: 1003565361?
* IP Rating: IP55
* Insulation Class: F
* Duty: S1
* Service Factor: 1.15
* Ambient: 40 degrees C
* Power: 1.5 kW (at 415V Y, 50 Hz)
* Speed: 2855 min-1 (at 415V Y, 50 Hz)
* Current: 3.05 A (at 415V Y, 50 Hz)
* Power Factor: 0.81 (at 415V Y, 50 Hz)
* Efficiency Class: EFF E2
* Bearings: 6205-ZZ / 6204-ZZ

Motor Starter
* Brand: Schneider Electric
* Model: LE1M35N710
* IP Rating: IP65
* Coil Voltage: 415V, 50/60 Hz
* Three-phase AC3 rated
* Start (green) and stop (red) push buttons with indicator lamp

Electrical Connection
* Three-phase industrial plug (5-pin, appears to be 20A rated based on size)
* Heavy-duty power cable

Trolley
* Stainless steel frame construction
* Flat top shelf
* Four swivel castors

Condition Notes
* The pump head is in fair condition with surface marks and residue visible on the stainless steel casing
* The WEG motor shows paint chipping and flaking across the housing, with areas of surface corrosion visible on the fan cover end and around the terminal box
* Rust staining visible on the base plate of the stainless steel trolley
* The Schneider Electric starter enclosure shows general soiling and marks consistent with industrial use
* The castors appear functional
* Untested

Included
* Stainless steel centrifugal pump assembly
* WEG 1.5 kW three-phase motor
* Schneider Electric LE1M35N710 motor starter
* Three-phase power cable with industrial plug
* Mobile stainless steel trolley frame with castors

Location of item: 90-94 Bannister Road, Canning Vale, WA, Australia
