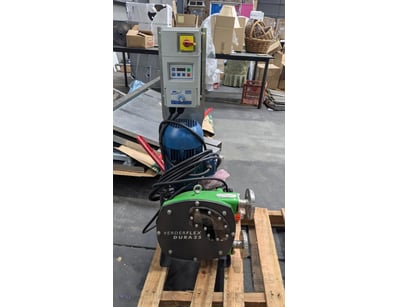

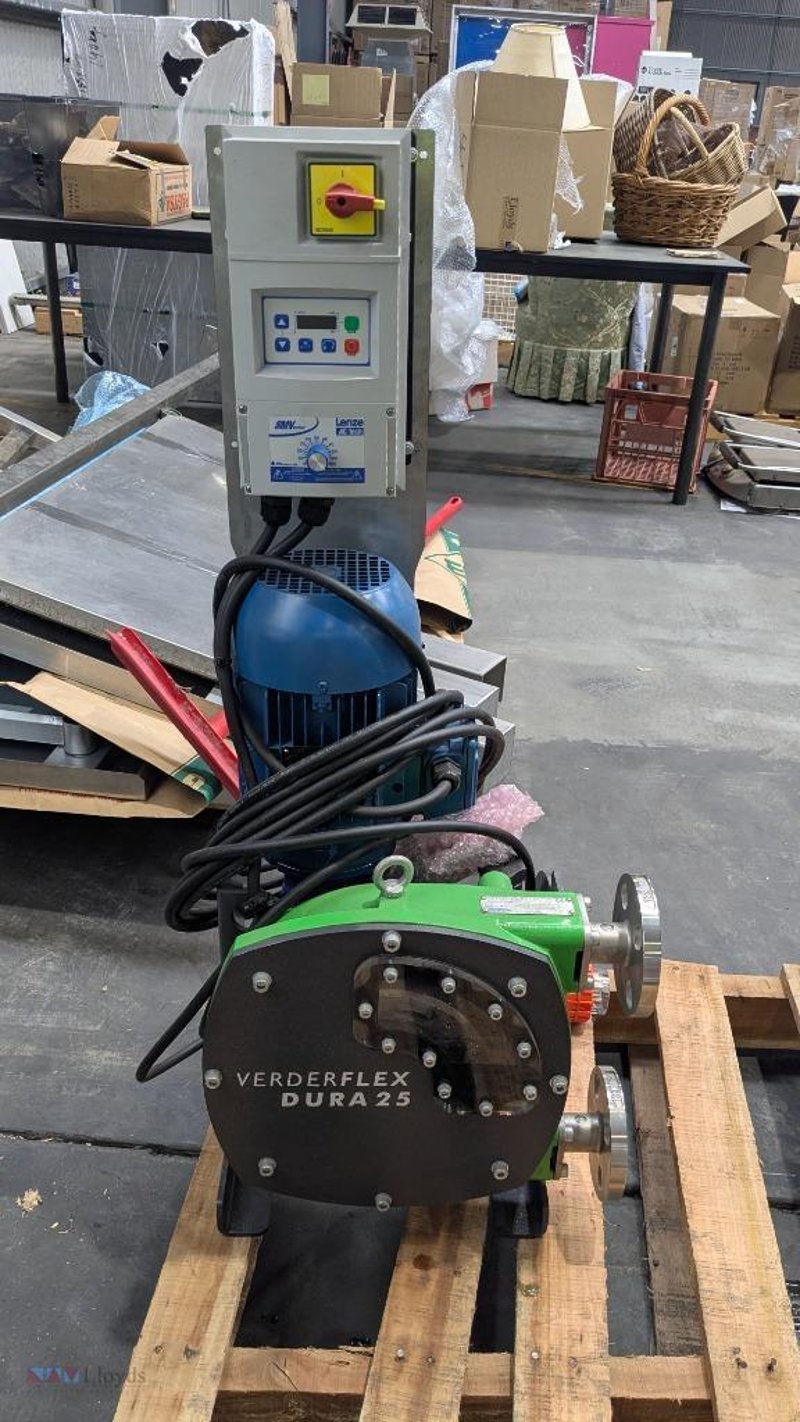

Verderflex Dura 25 Peristaltic Pump with Lenze AC Tech Variable Frequency Drive - Industrial Fluid Transfer System

Equipment Overview
Complete peristaltic pump assembly comprising a Verderflex Dura 25 positive displacement pump paired with a Lenze AC Tech SINVector variable frequency drive (VFD) for precise flow rate control.

Key Components
Pump Unit: Verderflex Dura 25 peristaltic pump
Model: DURA25
Serial Number: 463B4D (manufactured 2021)
Pump Type: Peristaltic (hose squeeze) positive displacement pump
Manufacturer: Verder (UK-based industrial pump specialist)
Colour: Green and black industrial finish
Construction: Robust metal frame with integrated motor coupling

Drive System: Lenze AC Tech SINVector variable frequency drive
Type: 3-phase AC inverter drive for motor speed control
Control Interface: Digital display with push-button control panel (up/down arrows, mode selection, emergency stop button)
Disconnect: Heavy-duty rotary isolator switch with red handle (I/O position)
Electrical Connector: Industrial 5-pin plug (orange connector visible in photos)

Motor: Blue 3-phase electric motor mounted on pump frame
Motor Type: IE3 efficiency class industrial motor
Power Supply: 3-phase AC (drive-controlled variable speed)
Cooling: Finned motor housing for thermal dissipation

Hose and Connections
Discharge hose: Heavy-duty black reinforced tubing with multiple coils
Hose diameter: Approximately 16-20mm (industrial grade)
Inlet/outlet ports: Threaded connections on pump body
Suction capability: Positive displacement design allows self-priming

Mounting and Portability
Base: Mounted on timber pallet (approximately 1200 x 800mm)
Weight: Approximately 80-100kg (requires mechanical handling)
Forklift compatible: Yes
Footprint: Compact industrial design suitable for fixed or mobile installation

Condition
Overall Condition: New industrial equipment, fully functional
Pump body: Minor surface wear consistent with industrial use; no significant corrosion or damage observed
Motor: Operational, cooling fins intact
Drive unit: Fully functional, display operational, all buttons responsive
Hose: Intact, no visible cracks or splits; minor cosmetic wear
Electrical connections: Secure and intact

Specifications
Pump displacement: Peristaltic design (flow rate variable via drive frequency control)
Maximum pressure: Typical for Dura 25 series, approximately 3 bar (check manufacturer specs for exact rating)
Suction lift: Up to 2 metres (peristaltic advantage)
Temperature range: Suitable for ambient industrial environments
Fluid compatibility: Suitable for water, chemicals, slurries, and abrasive fluids (hose material dependent)
Drive frequency range: 0-50Hz variable (via Lenze control)

Inclusions
Verderflex Dura 25 pump unit with motor
Lenze AC Tech SINVector variable frequency drive
Discharge hose assembly (as shown)
Timber pallet base
Power cable (black, approximately 5 metres)
Industrial 5-pin connector plug
Rotary isolator switch

Not Included
Original pump documentation or manuals
Drive programming documentation
Inlet hose or suction strainer
Spare hose or wear parts
Calibration certificates

Buyer to arrange suitable transport vehicle capable of carrying pallet-mounted equipment (approximately 100kg). Forklift access available at pickup location. Equipment is heavy and requires mechanical handling. Buyer to inspect prior to bidding and arrange own transport. Sold as described, no warranty provided.

Location of item: 90-94 Bannister Road, Canning Vale, WA, Australia
