Snap-on 3-Phase Piston Air Compressor - 270 Litre Tank - 5.5 kW / 7.5 HP - Used

Condition: Used

Key Specifications
* Brand: Snap-on (manufactured by Fiac, Italy)
* Code: 1121570317
* Serial Number: ITR2009846
* Year of Manufacture: 2024
* Type: Belt-driven piston compressor with twin-cylinder pump head
* Motor: E.M.Z Electric Motors - 3 Phase
* Power: 5.5 kW / 7.5 HP
* Max Pressure: 10 bar / 145 psi
* Free Air Delivery: 830 l/min / 29.3 cfm
* Voltage: 415V / 50Hz / 3-Phase
* Amperage: 11.6 A
* Motor Speed: 1200 min-1 (RPM)
* Tank Capacity: 270 litres
* Weight: 152 kg
* IP Rating: IP 54
* Colour: Orange

Included

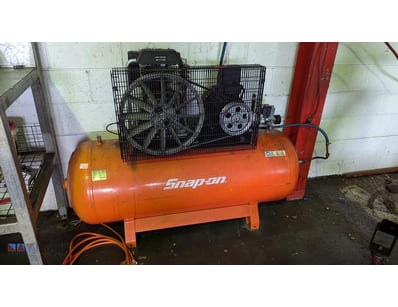

* Compressor unit as pictured
* Pressure regulator and gauge visible on right-hand side
* Drain valve at base of tank
* Belt guard / fan guard fitted

Condition Notes
* 2024 build date as shown on the Fiac rating plate. The unit is installed in a workshop environment and appears to have been in active use.
* The orange tank shows general surface marks, scuffs and areas of grime consistent with workshop use. Some discolouration and staining visible on the wall behind the compressor head area.
* The belt guard and fan guard are intact. The twin-cylinder pump head and intercooler are visible through the guard.
* The E.M.Z electric motor plate is partially obscured by dirt and corrosion; the specific motor data fields (V, HP, KW, RPM, IP, Serial, Date) are not legible on the motor plate itself, though the main Fiac rating plate on the tank confirms the key specifications.
* The pressure regulator and gauge are visible on the right-hand side of the tank. A blue air line is connected at the outlet.
* An orange extension lead is visible on the floor near the unit; it is not confirmed as included with the compressor.
* This is a 3-phase unit requiring 415V 3-phase power supply.

Serial Number: ITR2009846

Location: Woolgoolga, NSW
Inspections: Monday the 12th October, 9am to 1pm
Collections: Monday 19th to Wednesday 21st October, 9am to 4pm
Contact: Tammy - 0458 981 629

Location of item: NSW, Australia

This item is being offered PICK UP ONLY. Local collection is available, if shipping is required, bidders are encouraged to organise their own freight.

Thinking of financing? Get pre-auction finance ready with Lloyds - Click here & speak to our team today!

As Standard Auction Practice all Vehicles are Sold Unregistered and without plates

Buyer is responsible for the safe removal of asset

ENQUIRIES: Contact our Machinery team directly on 0489 996 390 or [email protected] for all enquiries.

(This asset is sold under standard auction conditions, as is, where is. All photos, descriptions, odometer readings, hour readings, engine specifications, and any condition reports should be used as a guide only and have been compiled after speaking with the owners. The photos are current as at time of book-in. Lloyds do not knowingly sell faulty goods. Inspection is highly recommended prior to sale & is the responsibility of the bidder. There is no warranty & no cooling-off period.)
