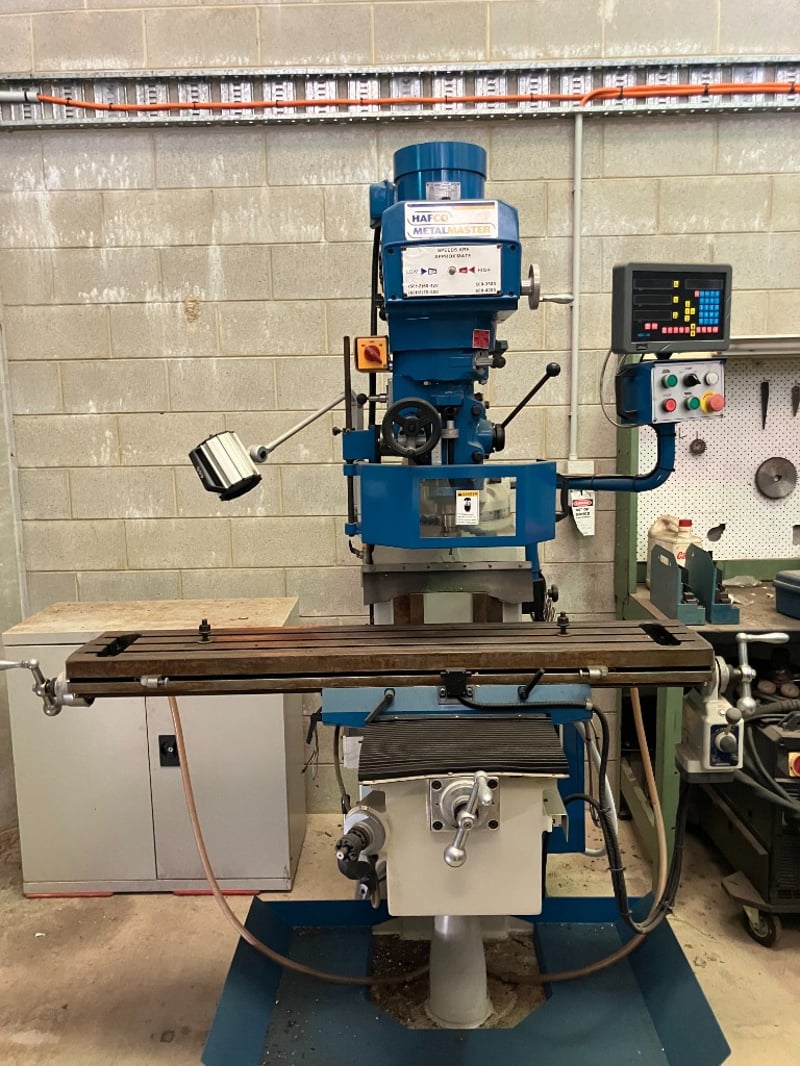

UNRESERVED Ex-Gov Hafco Metal Master Industrial Turret Milling Machine

Make: Hafco Metal Master
Model – BM-40V
Year: 2014
Serial Number – 141108

Description – Hafco Metal Master Industrial Turret Milling Machine owned since new, said to be in good used working condition. The turret milling machine has had little use and has been stored in a small workshop since purchase. For the last 5 years it has been disconnected from 3 phase power due to the workshops reduced capacity. Assortment of attachments and tools to be paired with machine.

Specifications:
Model: BM-40V
Digital Readout: 3-Axis Digital Readout
Type: Vertical
(mm)Table Size: 1370 x 254
Spindle Taper - Vertical: NT30
(mm)Longitudinal Travel (X-Axis): 860
(mm)Cross Travel (Y-Axis): 360
(mm)Vertical Travel (Z-Axis): 425
Type of Slides: Dovetail
(mm)Ram Travel: 508
(mm)Spindle to Table: 505
(mm)Spindle Travel / Diameter: 127/86
(mm)Throat Depth (max.): 735
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
(mm/rev)Power Feed - Quill: 0.015 / 0.04 / 0.08
(mm/min)Power Feed - Longitudinal (X-Axis): 20 - 2000
(mm/min)Power Feed - Cross (Y-Axis): Optional
(mm/min)Power Feed - Vertical (Z-Axis): Optional
(inch / mm)Table T-Slot Size: 5/8
(kg)Work Table Load Capacity: 300
(No./ rpm)Spindle Speeds Vertical: Variable (70 - 3500)
(kW / hp)Motor Power - Vertical Spindle: 2.2 / 3
(V / amp)Voltage / Amperage: 415
(kg)Nett Weight: 1300

NOTE: PARTIAL DISMANTLING REQUIRED, BUYER TO SUPPLY OWN TOOLS AND APPROPRIATE LABOUR FOR SAFE REMOVAL OF ASSET, FORKLIFT AVAILABLE ONSITE FOR LOADING

Collections by appointment and to occur within 7 days after auction has closed, once full cleared funds have been received.

Location: Cairns QLD
Contact: Jamie 0486 045 295

Location of item: Onsite, Cairns, QLD, Australia

This item is being offered PICK UP ONLY. Local collection is available, if shipping is required, bidders are encouraged to organise their own freight.

Thinking of financing? Get pre-auction finance ready with Lloyds - Click here & speak to our team today!

As Standard Auction Practice all Vehicles are Sold Unregistered and without plates

Buyer is responsible for the safe removal of asset

ENQUIRIES: Contact our Machinery team directly on 0489 996 390 or [email protected] for all enquiries.

(This asset is sold under standard auction conditions, as is, where is. All photos, descriptions, odometer readings, hour readings, engine specifications, and any condition reports should be used as a guide only and have been compiled after speaking with the owners. The photos are current as at time of book-in. Lloyds do not knowingly sell faulty goods. Inspection is highly recommended prior to sale & is the responsibility of the bidder. There is no warranty & no cooling-off period.)
