Engineered Steel Shed Design Package – Approx. 15m x 24m with Mezzanine

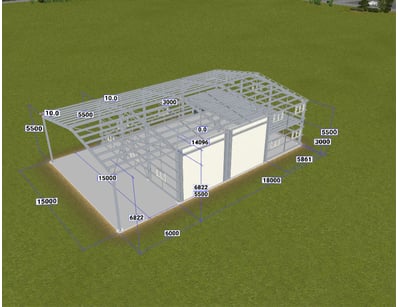

Comprehensive engineered design and construction documentation for a large industrial / commercial steel shed,

Key Details:
Overall building size: approx. 15.0m wide x 24.0m long
Eave height: approx. 5.5m
Apex height: approx. 6.9m
Roof: Multi-span portal frame design (roof pitch varies)
Structure: Cold-formed steel portal frame construction
Wind rating: Designed to AS/NZS 1170 standards (Wind Region B)
Intended use: Commercial / industrial shed


Construction & Engineering:
Designed in accordance with relevant Australian Standards including AS 1170, AS 4100, AS/NZS 4600 and NCC requirements
Includes full structural calculations, footing designs, bracing layouts and member schedules
Footings: Bored pier footing design (details included)
Concrete slab allowance: 100mm slab noted in design
Engineer certified (Form 15) – Design-specification compliance certificate included
Cladding & Structure:
Wall and roof cladding specified as Colorbond Monoclad 0.42 BMT
Complete member schedules for columns, rafters, purlins, girts, bracing and fixings
Detailed connection drawings and fastening specifications


Mezzanine:
Engineered mezzanine floor design included
Approx. 5.86m x 14m platform
Designed for 2.5kPa live load
Structural layout and connection details provided
(Note: balustrades, stairs and handrails to NCC to be provided by others)

Documentation Included:
Structural design report
Certified construction drawings (plans, elevations, sections)
Footing and slab details
Member and cladding schedules
Connection details
Engineer Form 15 compliance certificate
